The Next Era of Information Transmission: Fiber Optic Networking Innovations

Did you know that one hair-thin fiber can transmit more than 100 Tbps of information each second? That’s enough to stream 12 million HD movies simultaneously—a leap from the 1950s, when scientists first harnessed light to send basic signals.

• Data transmission rates 100x faster than old copper lines
• No disruption from electrical or radio noise
• Capacity to support 5G networks and 8K streaming

Characteristic	Copper Wiring	Fiber Optic Cables
Speed	10 Gbps max	100+ Tbps
Range	100 meters	70+ kilometers
Privacy	Easily tapped	Extremely hard to intercept

Light pulses bounce through glass cores using total internal reflection, like a laser ricocheting through a mirrored tunnel. This physics trick prevents signal loss, even over continental distances. With growing video conferencing and IoT devices, these fibers prevent network overloads – Fiber coloring machine.

The Development Path of Fiber Optic Communications

Years of research turned the concept of optical data transmission into a working technology. Researchers in the 1950s discovered that glass strands could guide light—an idea that revolutionized today’s communications.

Early Experiments and Pioneers

In 1952, Narinder Singh Kapany demonstrated that light could propagate through curved glass fibers. He named the field “fiber optics,” establishing the basis for modern fiber networks. Alongside Harold Hopkins, he developed flexible imaging bundles that later inspired data transmission methods.

By the 1960s, labs demonstrated practical uses for these strands. Although initial implementations suffered loss, ongoing experiments improved their efficiency. Researchers found that ultra-purified glass cores extend signal reach with minimal distortion.

Key Fiber Optic Breakthroughs

The 1970s marked a turning point with the first commercial installations. Carriers switched from copper to fiber, enhancing call quality and bandwidth. In 1970, Corning Glass Works introduced low-attenuation fiber capable of 65 km spans.

Year	Milestone	Impact
1977	Initial live telephone transmissions	Proved real-world reliability
1988	Launch of TAT-8 transatlantic link	Connected continents
1990s	Erbium-doped amplifiers	Allowed extensive long-haul connections

Modern advancements focus on speed and scalability. DWDM technology multiplexes many channels on one fiber concurrently. These leaps bridge lab experiments to the backbone of global communication systems.

Basic Principles of Fiber Optic Data Transfer

Given light’s unmatched speed, it’s a perfect medium for data transmission. This straightforward concept underpins contemporary networks. Rather than electrons in metal cables, photons traverse geographic barriers. Below is the fundamental mechanism.

Photons vs. Electrons: Why Light Wins

Optical signals transmit data more effectively than electrical currents. Photons:

• Travel at ~186,000 mi/s (~99.7% of c)
• Don’t create heat or electromagnetic interference
• Can carry multiple signals at once using different wavelengths

Criterion	Electron Signaling (Copper)	Photon Signaling (Fiber)
Speed	Max ~10 Gbps	100+ Tbps
Noise Susceptibility	Vulnerable to electrical noise	Immune
Power Consumption	High	Lower energy requirement

Total Internal Reflection in Fiber Cores

Light stays trapped in the core—the central glass strand—thanks to total internal reflection. The core has a higher refractive index than the surrounding cladding. Upon striking the boundary at a critical angle, it reflects internally, traveling long distances.

This design prevents signal loss. Over extensive spans, nearly 95% of photons arrive intact. Combined with laser precision, it ensures your video calls stay crisp and your downloads finish fast.

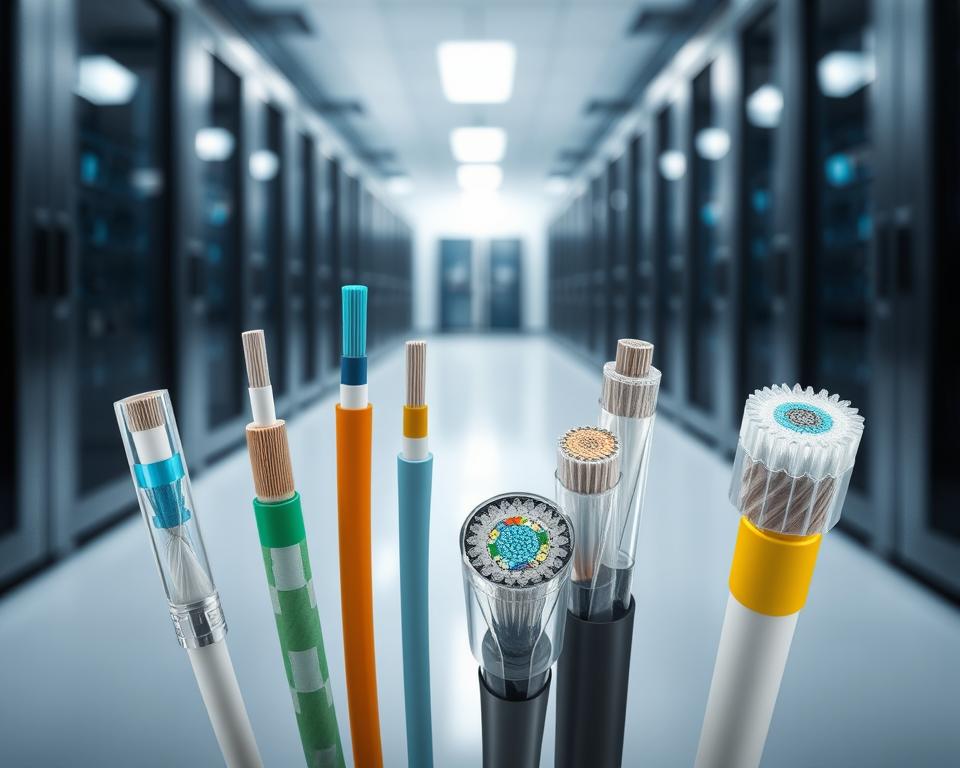

Various Fiber Cable Categories

Not all glass strands are created equal. The right cable type depends on how far your data needs to travel and how much information you’re sending. Below are the two primary classifications and their distinct features.

Feature	Single-Mode	MMF
Core Diameter	9 µm	50–62.5 µm
Bandwidth	>100 GHz	~35–500 MHz
Max Distance	120 miles	1,600 feet
Common Uses	Telecom networks	Data centers

Medical centers deploy single-mode links to move MRI scans across campuses. Schools often pick multi-mode for classroom networks—it handles video streams without breaking budgets. Each cable category maintains connectivity, tailored to specific needs.

Anatomy of Fiber Optic Cables

Ever wondered what keeps your internet running smoothly during a storm The answer lies in the smart design of modern cables. These high-tech threads use multiple layers to protect data while traveling at light speed.

Core, Cladding, and Coating Layers

Each fiber’s core is ultra-thin, even narrower than human hair. This pure glass guides photons via total internal reflection. The cladding layer, with a lower refractive index, reflects stray light back into the core.

An acrylate polymer coating encases the cladding and core. This ~250 µm barrier safeguards against physical abrasions and water ingress. Together, these components form the light-carrying highway inside every optical fiber.

Strengthening Fibers and Protective Jackets

Kevlar® reinforces the coated core, ensuring tensile strength. These aramid fibers absorb tension during installation, preventing breaks when pulling cables through conduits. A PE jacket atop resists environmental hazards, chemicals, and rodent gnawing.

Component	Substance	Purpose
Core	Pure silica glass	Light transmission
Surrounding Glass	Doped silica	Signal containment
Polymer Layer	Acrylate polymer	Physical protection
Jacket	Polyethylene	Environmental shield

Color coding matters too—orange jackets denote multi-mode cables, while yellow marks single-mode versions. Technicians rely on these hues to differentiate fibers for setup or troubleshooting.

Working Principles Behind Data Transmission

How does information travel at light speed without getting lost It involves converting electrical pulses into controlled optical bursts. Flashes map bits (1s) and dark intervals (0s), forming an optical binary stream deciphered by lasers.

Photon-Based Signaling

Lasers emit ~500 million pulses/sec through fiber cores. Advanced Fiber coloring machine techniques like QAM-16 pack 4 bits into each flash, quadrupling capacity. Such optical signaling is virtually immune to EMI that plagues copper lines.

Managing Dispersion & Attenuation

Two main challenges disrupt flawless transmission:

• Chromatic dispersion: Different light colors (wavelengths) arrive at varying speeds.
• Mode dispersion: Light paths scatter in multi-core cables.

Today’s fibers address these with these solutions:

Solution	Effect	Gain
Doped glass cores	Equalizes propagation speeds	40% less signal spread
Digital signal processors	On-the-fly error mitigation	>99.999% fidelity

High-end fibers reduce attenuation to ~0.15 dB/km, improving by ~92% over initial versions. Paired with EMI-resistant layers, they preserve signal fidelity worldwide. The result? Your video call to Tokyo stays crystal clear, even during a thunderstorm.

Advanced Concepts in Optical Fiber Networking

How do video streams remain stable amid storms? The answer lies in specialized connectors and precision installation methods that form the backbone of modern networks. These components ensure seamless data flow across cities and continents.

Connectors and Splicing Techniques

Network reliability starts with proper connections. SC connectors snap into place with push-pull ease, while LC types save space in crowded server racks. MPO/MTP designs handle multiple strands at once—perfect for data centers moving massive files.

Two splicing methods dominate the field:

• Fusion jointing: Joins fiber ends by fusing, achieving minimal insertion loss.
• Mechanical jointing: Uses alignment sleeves for fast, reusable splices.

Connector	Best For	Insertion Loss
SC	Enterprise networks	0.25 dB
LC	High-density devices	0.20 dB
MPO	Data center interconnects	0.35 dB

Contemporary Network Architectures

Today’s architectures demand flexible installations. Micro-ducts let technicians blow cables through underground pipes, while armored designs withstand harsh outdoor conditions. Municipal implementations route fiber to traffic systems and surveillance, enabling intelligent networks.

Major telecom providers now deploy hybrid cables combining power lines and optical strands. This approach supports 5G towers and IoT devices simultaneously, proving that smart design keeps pace with our connected world.

Bandwidth and Throughput Advantages

Imagine data as water in pipes: larger pipes yield greater flow. This bandwidth principle underlies the shift to fiber optics. Where copper struggles like a garden hose, advanced cables act as firehoses, handling thousands of HD streams simultaneously.

• Photons moving at ~186,000 mi/s
• Many channels by WDM
• FEC slashes retransmissions by ~80%

Time Period	Peak Throughput	Cost per GB
1980s	45 Mbps	Approximately \$1,200
2000s	~10 Gbps	~\$0.12
2020s	~178 Tbps	~\$0.0004

Throughput dictates online performance. Video calls require ~5 Mbps each; VR needs ~50 Mbps. As NEC’s 2023 report shows, networks using glass cables support 40x more users than copper alternatives at half the energy cost.

“Every dollar invested in high-capacity networks yields $3.80 in economic growth through improved productivity.”| “Each \$1 poured into high-bandwidth infrastructure returns \$3.80 in productivity gains.”

Enhanced performance trims OPEX. Signals travel 60 miles without repeaters versus copper’s 3,000-foot limit. This efficiency enables 8K video streaming, real-time AI processing, and seamless cloud backups—all while keeping your monthly bill under $100.

Mitigating Noise & Attenuation

Ever tried making a call during a thunderstorm only to hear static Traditional copper lines struggle with such interference. But glass-based systems laugh it off. These cables use light instead of electricity, making them immune to electromagnetic noise from power lines, radios, or even lightning strikes.

Inherent EMI Immunity

While copper acts as an antenna, fiber is non-conductive. This means they ignore disruptive signals that plague copper networks. A 2023 study found 92% fewer data errors in industrial settings when using light-based systems compared to older methods – Fiber draw tower.

Mitigation of loss relies on:

• Ultra-pure glass cores reduce light scattering
• Accurate laser coupling decreases insertion loss
• Protective coatings prevent moisture damage

Factor	CM	Glass-Based
Noise Susceptibility	Significant	None
Signal Loss per Mile	3 dB	0.2 dB
Maintenance Needs	Monthly checks	~Yearly reviews

“Our factory’s error rates dropped 80% after switching to light-based networks—no more machine downtime from radio interference.”| “After switching to fiber, error rates fell by 80%, eliminating downtime from RF noise.”

Fiber excels in harsh environments. Subsea installations withstand saltwater corrosion, while desert networks endure sandstorms without signal degradation. With 99.995% uptime ratings, they’ve become the backbone of mission-critical systems worldwide.

Fiber’s Role in Telecom & Internet Services

How does your Netflix show arrive instantly from across the globe Fiber networks serve as the neural pathways of today’s Internet. These systems power everything from streaming services to stock market trades, using light to bridge continents.

Long-Distance & Metropolitan Fiber Deployment

Undersea fibers run ~750,000 mi, handling ~99% of intercontinental data. In cities, metro networks link cell towers and offices using hair-thin strands. Optical transmitters modulate light; receivers demodulate at endpoints.

Feature	Copper Infrastructure	Fiber Infrastructure
Speed	~1 Gbps	~100 Tbps
Lag	~5 ms per km	0.005 ms/km
Uptime	~99.9%	~99.995%

Application in Data Centers and Cable TV

Within data centers, fibers enable rack-to-rack transfers, shifting petabytes each day. Cable providers deliver 4K content through hybrid fiber-coaxial systems. After Verizon’s 2023 fiber rollout, buffering issues dropped by ~73%.

Three economic benefits drive adoption:

• 60% lower maintenance costs than copper
• Scalability to handle 5G demands
• Energy consumption ~40% less per data volume

From Wall Street to undersea cables, fiber networks demonstrate that high speed and stability go hand in hand. In the words of an engineer: “Nothing outpaces light when transferring vast datasets.”

Emerging Technologies in Fiber-Optic Applications

What if your internet could handle 8 billion video calls at once. Upcoming breakthroughs promise to redefine data mobility. Advanced transceivers and modulation schemes drive network evolution.

Advancements in Laser Transmitters and Photodetectors

Modern lasers now fire 200 wavelengths simultaneously—up from just 40 a decade ago. These tiny chips pack 5x more power while using 30% less energy. Paired with graphene-enhanced detectors, they spot faint light signals other devices miss.

Major innovations encompass:

• Lasers with narrow linewidths cut optical noise by ~90%
• PICs consolidate functions, shrinking component footprints
• Machine-learning calibration optimizes performance in real time

Coherent Optics & Multiplexing

Coherent systems treat light like radio waves, encoding data in its phase and amplitude. This trick boosts capacity 16-fold compared to older on-off signaling. When combined with wavelength-division multiplexing (WDM), single strands carry 800+ data streams.

Technique	Wavelengths	Capacity
DWDM	160	80 Tbps
OFDM	~512	120 Tbps
SDM	Multi-core fibers	~1 Pbps*

*Experimental (NTT, 2023)

Such approaches mesh with current networks with minimal overhaul. In 2024, Verizon’s coherent deployment doubled bandwidth on existing fiber routes. As one engineer noted: “We’re teaching old cables new tricks—the best is yet to come.”

Worldwide Fiber Standards & Guidelines

How do international calls remain glitch-free? Universal protocols guarantee seamless interoperability across diverse systems. Without these guidelines, networks would struggle with compatibility issues and performance gaps.

Standard	Focus Area	Impact
ITU G.652	Single-mode transmission	Supports >100 Gbps links
IEC 60793-2-50	Mechanical reliability	Ensures 20-year lifespans
ITU G.654	Undersea fiber	Prevents saltwater corrosion

Performance Metrics and Quality Assurance

Rigorous validation ensures reliable operations. Primary metrics: attenuation (<0.25 dB/km) and tensile rating (>50 N). Vendors conduct over 200 quality tests, including thermal and bend stress trials.

“Our compliance with IEC 61300-3-35 reduced installation errors by 65% last year.”| “Adhering to IEC 61300-3-35 led to a 65% drop in deployment mistakes.”

Certified parts and precise specs avert expensive rework. Installers use standardized color codes and termination methods, creating seamless connections between equipment from different vendors. Such uniformity preserves uninterrupted global data exchange.

Case Studies: Successful Fiber Optic Implementations

How do cities handle millions of simultaneous video streams without crashing Real-world deployments show how smart planning and advanced cables keep our digital world running smoothly. Let’s explore two groundbreaking projects that reshaped global connectivity.

Urban Deployments and Metro Networks

NYC’s Metro Fiber initiative addressed slow copper infrastructure, which hindered business connectivity by ~40%. They laid 800 mi of micro-trenched fiber beneath sidewalks, steering clear of subways and utilities. Outcomes: Latency fell from ~14 ms to ~2 ms; throughput increased by ~600%.

Issue	Solution	Outcome
Subsoil crowding	3D mapping for route optimization	92% faster installation
EMI challenges	Armored MC fiber	~99.99% reliability
Budget constraints	Public-private partnerships	~30% fewer expenses

Underwater & Cross-Ocean Deployment

MAREA spans ~4,000 mi from Virginia to Spain, delivering ~160 Tbps over 8 pairs. Installation crews faced 10,000-foot depths and shark bites, using robotic subs to bury strands in seabed sediment. This $160 million project now carries 55% of Europe-North America traffic.

“Subsea systems require 200+ design revisions before deployment. Every meter matters when you’re laying cable across tectonic plates.”| “Over 200 design iterations are typical for undersea cables. Small changes hugely impact viability across plates.”

Differences by deployment scenario:

• City installations prefer bend-insensitive fiber for tight paths
• Marine deployments need titanium-armored jackets
• Isolated sites rely on solar-driven amplifier stations

Either method shows how sound engineering and robust materials revolutionize data transport. Spanning city high-rises to sea depths, fiber underpins today’s digital existence.

Fiber Economics & Growth Potential

What fuels today’s streaming surge and telecommuting trend? It’s networks that pair CAPEX with OPEX efficiencies. Though \$60K/mi can be spent on installation, these fibers pay off over years of use.

Strategic Investment for Scalability

Upgrading to advanced networks cuts operational costs by 40% compared to copper systems. Fewer repairs are needed—no more corrosion issues or EMI troubleshooting. A 2024 study showed:

Expense Category	Copper-Based	Modern Networks
Installation	\$45/meter	~\$28/m
Energy Use	5W per device	1.2W per device
Service Calls	12/year	~2 annually

Global investment trends confirm this shift. Telecom giants plan to spend \$150 billion through 2027 expanding infrastructure. Locale upgrades hit ~300% ROI in 5 years via boosted efficiency and minimized outages.

Overcoming Rollout Challenges

Despite clear benefits, cities face three key challenges:

• Permit processes can extend schedules by ~18 months
• Labor shortages in specialized installation crews
• Public resistance to street excavations

“Our Phoenix deployment took 22 months instead of 14 due to permit bottlenecks. Still, the network boosted local GDP by \$380 million annually.”| “Phoenix’s build required ~22 months, not 14, over permit delays—but delivered ~\$380M/year in GDP uplift.”

Innovative solutions are emerging. Micro-trenching reduces street disruption by 80%, while public-private partnerships share financial risks. Such strategies enable cost-effective, scalable fiber deployment.

Innovations and Future Prospects in Data Transmission

Fiber backbones are receiving performance upgrades. Researchers now push boundaries with materials thinner than spider silk and signaling methods that outpace traditional designs. Such progress aims to reduce latency and accommodate future data surges.

Next-Generation Fiber Technologies

Hollow-core strands filled with air could slash latency by 30%, according to 2024 trials at MIT. By routing photons through near-vacuum cores, they minimize refractive loss. Parallel multi-core fibers embed seven channels in one sheath, boosting throughput ~4×.

Metric	Today’s Specs	2027 Projection
Throughput	~100 Tbps	1.2 Pbps
Range	~70 km	150 km
Energy Use	~0.5 W/device	0.15 W/device

New multiplexing schemes squeeze 400 wavelengths into single strands—up from 160 today. This “spectral supercharging” lets networks handle 8K virtual reality streams without breaking stride.

Convergence with 5G/6G Networks

Future 6G deployments depend on high-capacity fiber rooftails for mmWave support. Dallas field tests achieved ~10 Gbps wireless throughput over robust fiber backhaul.

• 5G small cells need fiber links every 500 feet
• Ground-satellite nodes depend on ultra-low-latency backbones
• Smart factories use real-time data flows for robotic precision

A 2023 Nokia study found networks using advanced modes reduced 5G latency by 82%. As one engineer noted: “Wireless needs wired bones—the faster the backbone, the smoother the airwaves.”

In Closing

The invisible threads connecting our digital world keep getting stronger. Over decades, advancements in materials and engineering transformed how we exchange information—from copper’s limitations to light-speed possibilities. Modern fiber infrastructures show that higher speeds are critical for video streaming, telemedicine, and trading systems.

Today’s networks succeed due to clever engineering. Polymer coatings defend fragile cores; international specs guarantee interoperability. These innovations slash energy use by 40% compared to older methods, making high-speed access both sustainable and scalable.

Obstacles persist—deployment expenses and community engagement. Still, ROI is strong—each \$1 spent returns ~\$4 in economic output. As 5G expands and AI demands real-time data, reliable infrastructure becomes non-negotiable.

Looking ahead, researchers aim to push boundaries further. Hollow cores and advanced wavelength methods may render current rates outdated. Undoubtedly, information exchange will advance further, fueled by our relentless drive for faster, broader, and more intelligent connectivity.
